Fiber & Reinforcement Dispensers

NEW

Now we rent out the machine.

The minimum rental period is one week for the price of EUR 715 (3000 PLN). Pickup from Poznań, Poland.

It is also possible to purchase the machine during the rental period. Price to be negotiated.



We have now started the production of these machines with dual air flow regulation (optional).

Electronic control of the blower motor speed over a large range

We also sell individual segments of the machine



nic control of the blower motor speed over a large rangeExcellent for dosing dispersed reinforcement, polypropylene fibers, concrete admixtures, and other bulk materials such as grains, corn, and peas, as well as liquids. Suitable for use at concrete batching plants and in agriculture. Also used for aerating grain in silos.

The dispenser guarantees 100% fragmentation of reinforcement. It works perfectly with reinforcement thicknesses of minimum 1 mm and 0.8 mm, as well as fibers and liquids.

One of the most interesting applications of dispersed reinforcement is in the construction of modern bridges, where resistance to dynamic loads and weather conditions is crucial. In a European case study, steel fibers were used to reinforce concrete, which helped reduce cracking and increase the durability of the structure. Thanks to this project, investors gained a better understanding of what dispersed reinforcement is and how significantly it extends the lifespan of infrastructure.

Another example of dispersed reinforcement application can be found in industrial flooring construction, where minimizing maintenance costs while maintaining high strength is essential.

This machine is widely used and indispensable in many different facilities.

https://www.youtube.com/watch?v=sHNV864fopM

The mesh prevents larger objects (parts of cartons, bags, etc.) from falling into the hopper and also eliminates the need for a mounted vibrator, although there is an option to install one. We have mounted vibrators available in stock.

Convenient to use and transport. Prevents the formation of "hedgehogs" (clumps) in the concrete. Designed for use in batching plants and on construction sites when feeding reinforcement, fibers, and plasticizers directly into the concrete mixer truck. Easy to transport.

It consists of: a blower on wheels with a 5.5 kW / 400V motor, a mesh on which the reinforcement is laid, a main transport pipe with a diameter of 14 cm (pipe in two parts for easier transport), two 90-degree elbows, and an end elbow supported by two rods holding the pipe.

This dispenser is designed with multiple sturdy, easily detachable segments, ensuring high durability. Each part can be replaced easily and cost-effectively in case of damage or wear. Despite this, the structure is very rigid. Wherever possible, we have used standardized flanges for connections. Practically, there are only two types of flanges — one type for pipes (round) and another rectangular type for connecting individual machine parts.

Now we manufacture pipes and elbows from 3.8 mm thick steel.
The pipes and elbows can rotate in various directions on a flange with multiple holes.

Additional wheels (sold separately) allow repositioning the dispenser without dismantling the pipes and make moving the machine easier.
Two wheel options are available — with height adjustment or without.
We have also made a wider wheelbase, which improves the machine’s stability.

We also install the dispenser permanently inside halls.

The powerful blower (5.5 kW), designed by us, enables universal application and transport over longer distances.
Loading the concrete mixer truck takes about 3 minutes with 2 operators.

There is an option to mount a mounted vibrator at the bottom of the hopper, although it is not necessary for operation, as the reinforcement easily flows in.

Net price of the basic set – 14,000.00 PLN
(Includes blower, 2 x 900 elbows, vertical pipe, end elbow, rods reinforcing the pipe.)

Net Price List

  • Additional pipe, price per 1 meter – 180.00 PLN

  • Additional end elbow, ø140 – 270.00 PLN

  • Additional 60-degree elbow, ø140 – 320.00 PLN

  • 90-degree elbow, ø140 – 400.00 PLN

  • Additional double wheels for dispenser – 950.00 PLN (with smooth height adjustment) RECOMMENDED TO PURCHASE (not necessary for indoor use)

  • Additional wheels for dispenser, without height adjustment – 450.00 PLN

  • Cyclone – 720.00 PLN (not needed when feeding reinforcement to the concrete mixer truck)

  • Mounted vibrator – 750.00 PLN

  • Additional electronic blower motor speed change - EUR 619 (2600 PLN)

                                             Installation at customer’s site – 400.00 PLN( with assistance of one employee from the buyer, if using our transport)

                                        Pickup by customer, or delivery with our transport, price to be agreed (approx. 500–700 PLN; difficult to ship via courier)





Additional wheels facilitate loading into the concrete mixer truck.
Additional wheels facilitate loading into the concrete mixer truck.
5.5 kW motor.
5.5 kW motor.
Air intake regulation.
Air intake regulation.
Adjustable connection collar. Only 4 screws are needed for installation.
Adjustable connection collar. Only 4 screws are needed for installation.
The split pipe is easier to transport.
The split pipe is easier to transport.
Star/Delta switch.
Star/Delta switch.
Such an end elbow allows to throw the fiber inside the concrete mixer.
Such an end elbow allows to throw the fiber inside the concrete mixer.
Cyclone
Cyclone
Electronic turnover change system
Electronic turnover change system
Light work and 100% fragmentation
Light work and 100% fragmentation
Installation inside the facility.
Installation inside the facility.
And here work with the cyclone
And here work with the cyclone

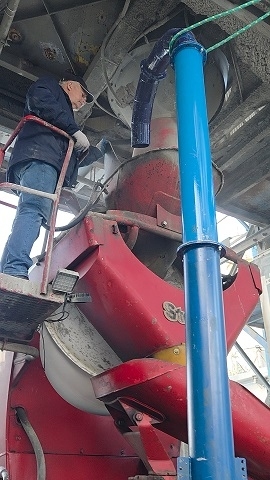

Somewhere in the concrete plant
Somewhere in the concrete plant
There is something to look at. Just edit it and now it's ready for easier work.
There is something to look at. Just edit it and now it's ready for easier work.
Easy to transport. Can be carried even to the construction site when using concrete from several batching plants.
Easy to transport. Can be carried even to the construction site when using concrete from several batching plants.
We brought it. It may be able to work soon.
We brought it. It may be able to work soon.
Transport of the dispenser to the customer.
Transport of the dispenser to the customer.
The client took the machine with such a small car thanks to the fact that the pipe is split.
The client took the machine with such a small car thanks to the fact that the pipe is split.
This dispenser was produced by us many, many years ago. It was good, but more difficult to manufacture, expensive, and not very mobile.
This dispenser was produced by us many, many years ago. It was good, but more difficult to manufacture, expensive, and not very mobile.
Properly distributed dispersed reinforcement in concrete.
Properly distributed dispersed reinforcement in concrete.
It can handle various types of reinforcement. It has adjustable airflow. With minimal airflow, it transports even plastic fibers and liquids well.
It can handle various types of reinforcement. It has adjustable airflow. With minimal airflow, it transports even plastic fibers and liquids well.
